Concrete splitter

hydraulic concrete splitter  for rock and concrete splitting

Hydraulic rock splitter & concrete splitter is one of the efficient,safest and easiest ways of mining,quarring,demolition & removing mass and reinforced concrete.

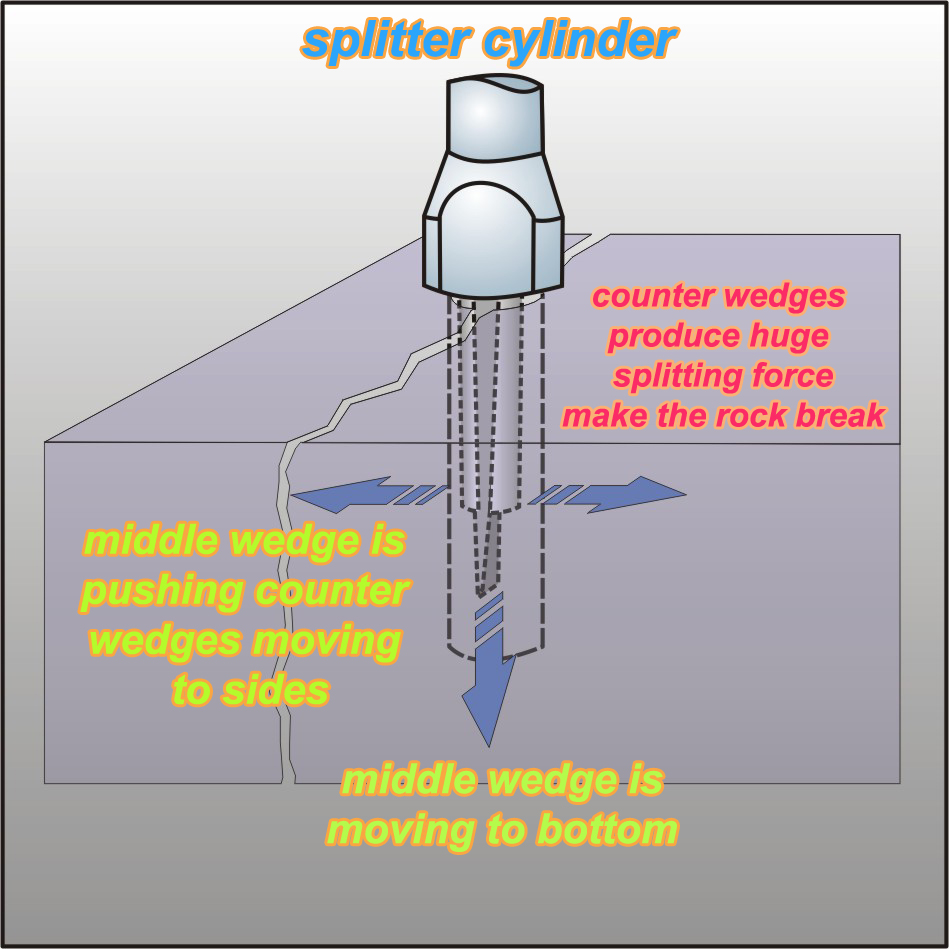

Many contractors find they can reduce costs,save time and make demolition work profitable using the hydraulic splitting method. Hydraulic splitting means controlled demolition. As the direction of breaks can be determined, concrete can be cut in sections as large as your equipment can handle. Hydraulic splitting eliminates both shocks and vibrations associated with large impact tools.

Hydraulic Splitter FEATURES

• Single person can easily use to perform operation.
• Hydraulic Rock Splitter produces force of 415 Tons.
• Interventions in presence of water and underwanter demolitions.
• Powerful on all types of ground strata.
• It can be used vertical and horizontal direction.
• Performs smooth splitting operation.
• For any demolition in respect of noise level.
• Operator can easily learn to operate the splitter within a short time.

TECHNICAL DETAILS

OUKAI SPLITTER

HD-25

• Weight:32kg
• Length cylinder body:700mm
• Size hole required:38mm
• Min.hole depth:≥500mm
• Max.splitting force:385Tons

HD-35

• Weight:40kg
• Length cylinder body:700mm
• Size hole required:42mm
• Min.hole depth:≥600mm
• Max.splitting force:420Tons

OUKAI SPLITTER

Diesel

• Weight:140kg
• Oil capacity:70L
•  power:6hp

Electric

• Weight:75kg
• Oil capacity:35L
• Motor power:3kw
